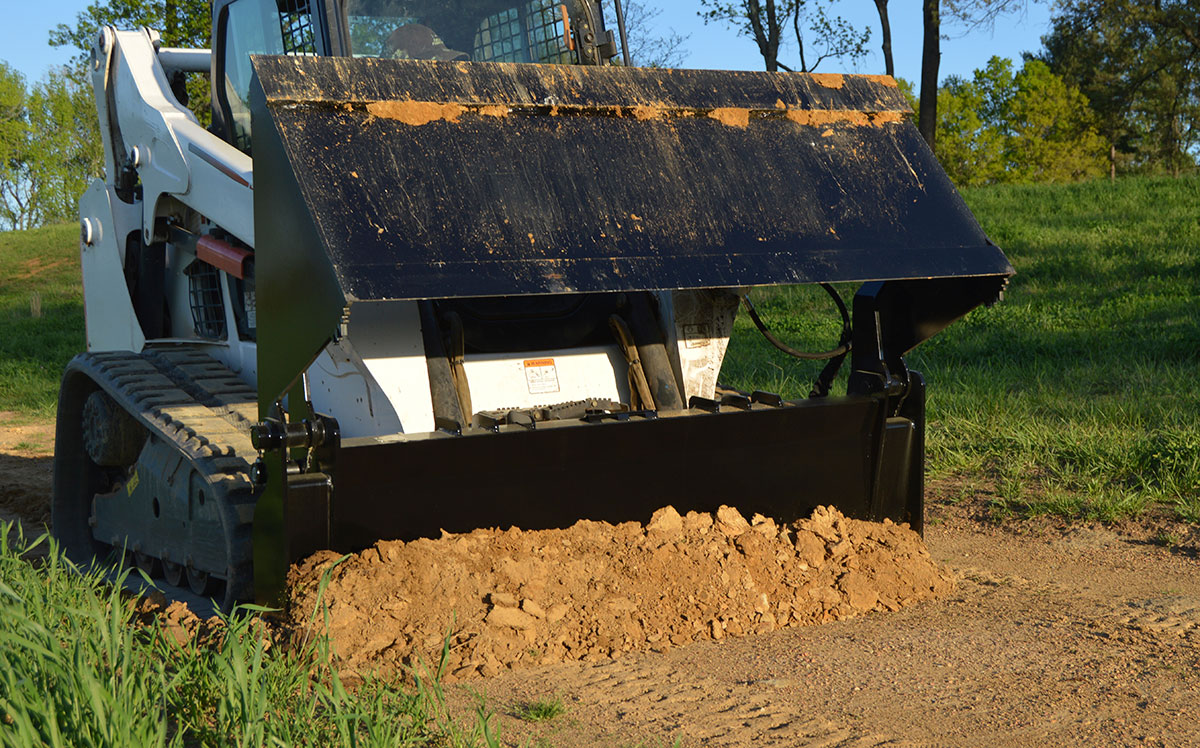

Project Description

4 In 1 Bucket

4in1-bucket

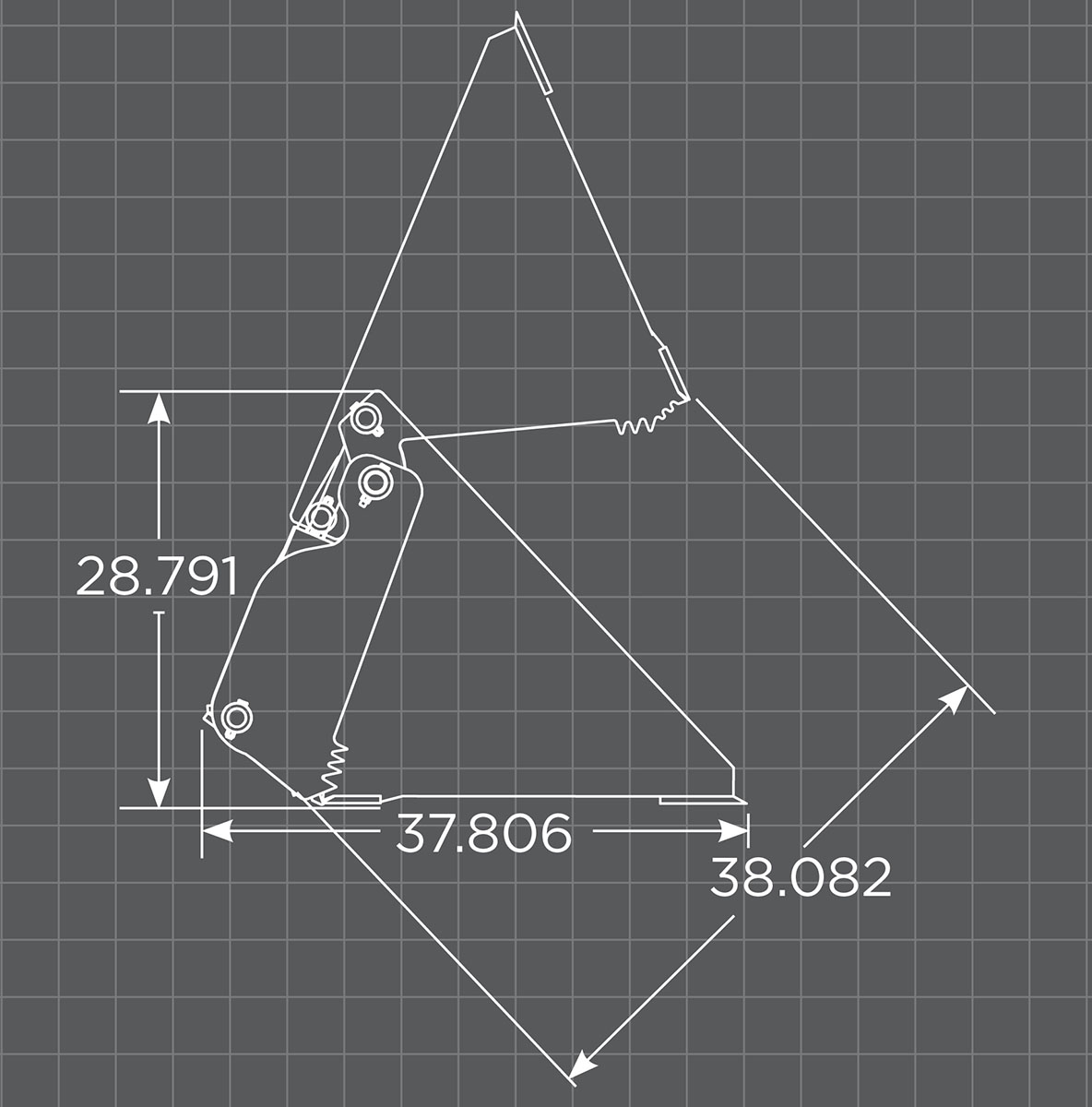

4 In 1 Bucket Schematic
  • Two 212” X 8″ hydraulic cylinders
  • Oversized, greasable pins
  • Opening width: 38″
  • 12” thick steel side plates
  • Front cutting edge  34” thick X 6″ wide, rear cutting edge (dozing edge) 58” thick X 6″ wide heat treated bolt-on reversible double edge
  • Also available with optional front bolt-on edge
  • Available with or without teeth
  • Available with or without toothbar (not available with bolt-on-edge)
  • 14” thick reinforced steel floor plate
  • We stock sizes: 60″, 66″, 72″, 78″, 84″, and custom sizes are also available
  • Reinforced quick attach
  • Comes equipped with Parker brand hoses, fittings, and couplers (Jobsite ready)
  • Treaded step

We manufacture a variety of skid steer loader buckets that can be used in multiple applications. Our skid steer loader buckets offer unique design features and each bucket is built with strong, durable construction. This construction includes industrial strength 3⁄16″ plate steel and feature ¾” x 6″ cutting edges. Cutting edges are not wrapped around, but welded together to ensure longer wear. This design provides added durability. All of our skid steer loader buckets come standard with Safety Treads. These provide the operator greater traction and support when entering and existing the cab.
