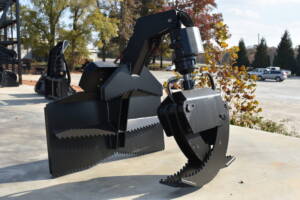

XHD Root Grapple — Specifications
Overview
Extreme-duty version for larger skid steers and harsher demolition/land clearing.
Core Specs
| Overall Height | 34 1/2” |
|---|
| Overall Length | 39 1/2″ |
|---|
| Top Tines | 1″ |
|---|
| Opening Width | 33¼” |
|---|
| Grappling Force | 9,500lbs |
|---|
| Cylinders | 2 × 10″ |
|---|
| Tine Thickness | ½” (outside tines 1″) |
|---|
| Tine Spacing | 8½”–9″ (custom available) |
|---|
| Pins | Oversized, greaseable 1¼” |
|---|
| Widths Stocked | 72″, 78″, 84″ (custom available) |
|---|
| Recommended HP | Up to ~110 HP |
|---|
| Weight | — (varies by width) |
|---|
Notable Features
- Independent tines; reinforced quick-attach.
- Protected hoses & covered cylinders; fully greasable hinges.
- Slides over ground without digging.
- Parker hoses, fittings & couplers included.
XTRA HEAVY DUTY ROOT GRAPPLE (75-120HP MACHINES)
| Part # | Description | Weight |
|---|
| 0010701066 | 66″ XHD ROOT GRAPPLE | |
| 0010701072 | 72″ XHD ROOT GRAPPLE | 1058lbs |
| 0010701078 | 78″ XHD ROOT GRAPPLE | 1063lbs |
| 0010701084 | 84″ XHD ROOT GRAPPLE | 1135lbs |
